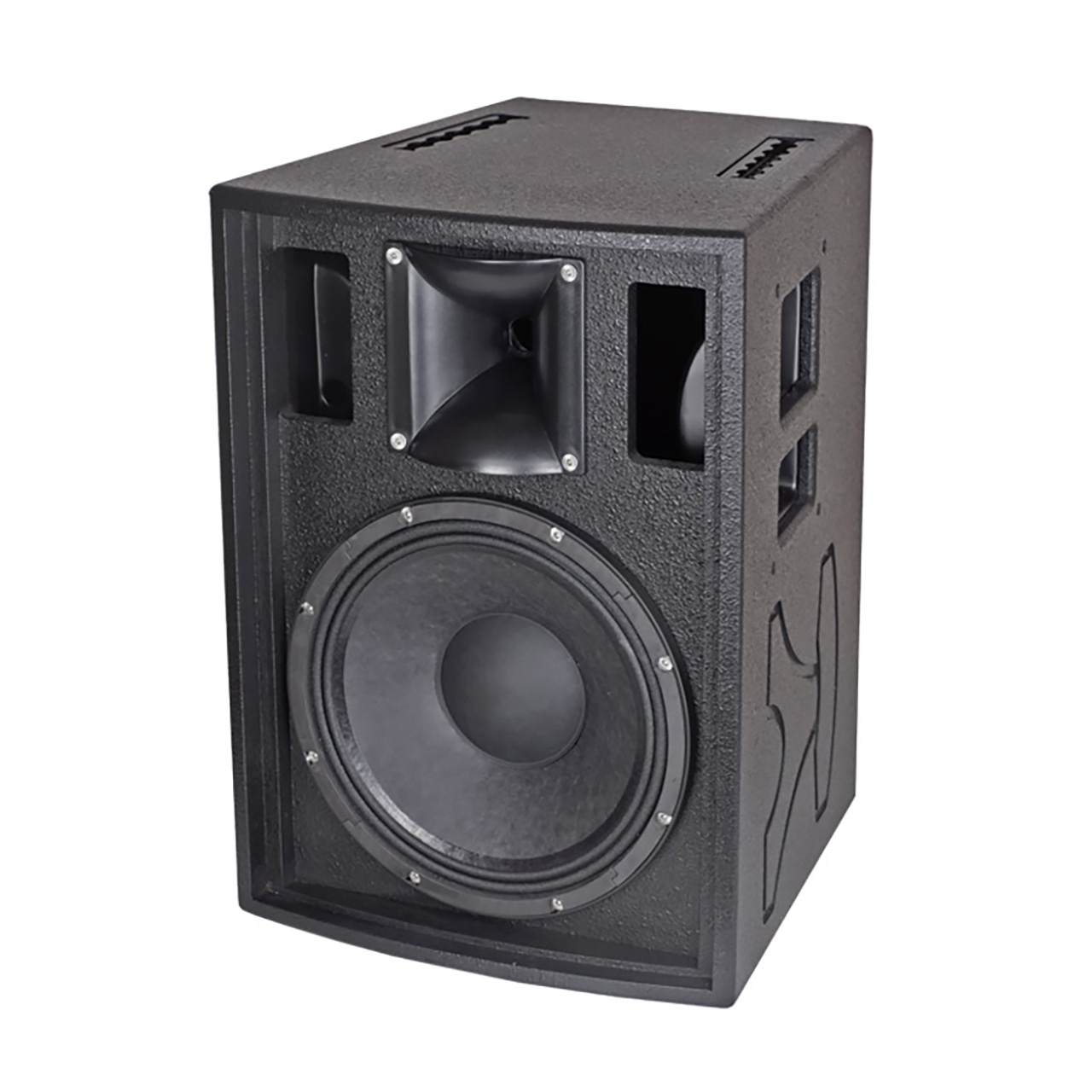

S12.1 MKII

2-Way Passive Speaker

Like its smaller 10′ counterpart, the compact 2-way S12.1 MKII passive speaker is also designated for a whole host of venues such as clubs, concerts, conferences, government functions, and theatres.



Best advantages

Suitable for temporary and permanent audio installations

Integrated rigging hardware

Weatherproof foam (water, dust)



Related applications

Specifications

AES Power: 350 W / 8 Ω
Bandwidth (-6dB): 85 Hz - 19 kHz
Sensitivity: 99 dB / 1W @1m
SPL MAX level: 126 dB
Directivity (-6dB): 90° H x 90° V
LF: 1 x 12’’ vented enclosure
HF: Compression 1’’
Connections: 2 Speakon NL4MP
Rigging:
Fem. socket. ø 35mm,
2 x Rails type aerodeck (top)
1 x Single stud (rear)
- 15 mm baltic birch wood
- Finished polyurethane painting
- Dim. H550 x D420 x W395, 24 kg
