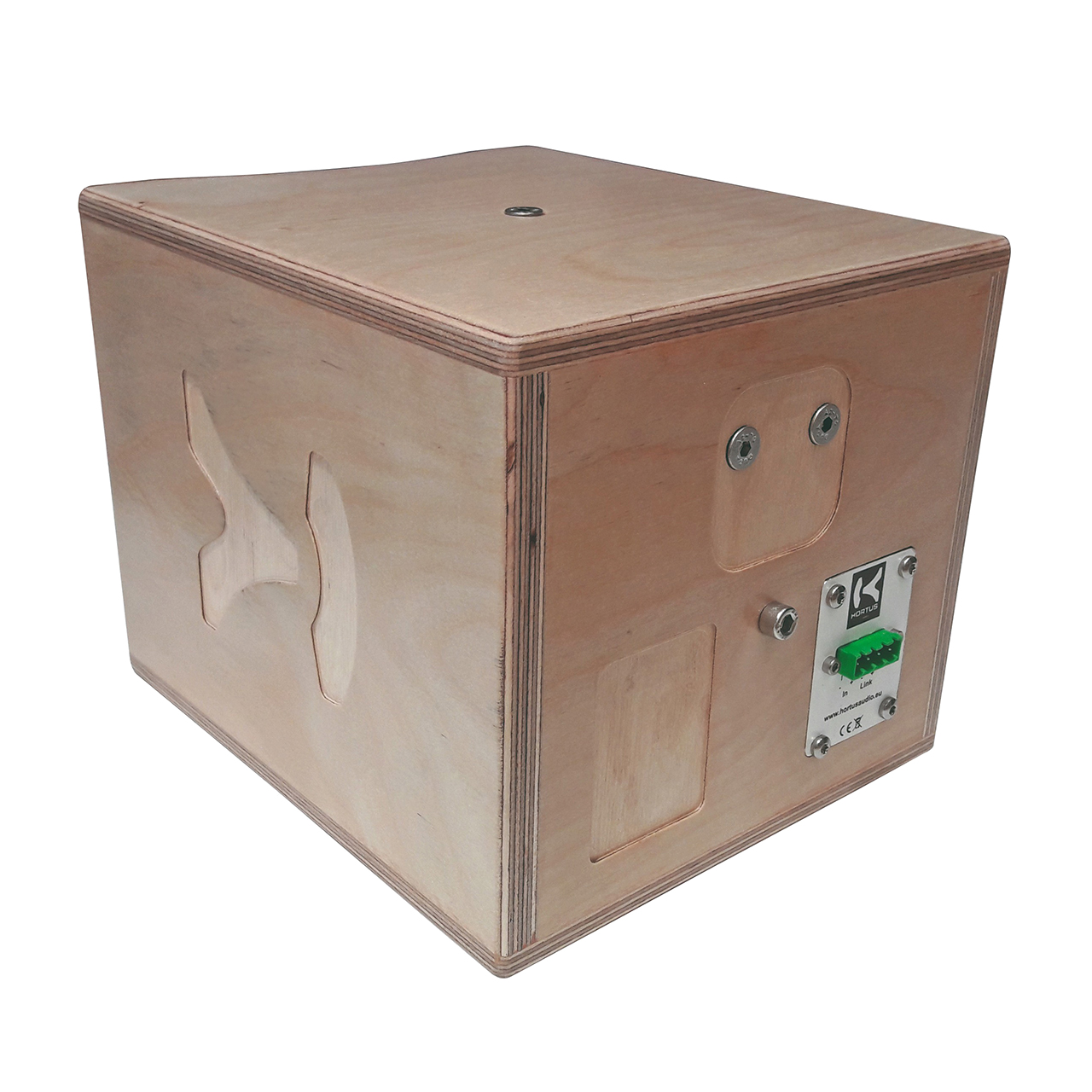

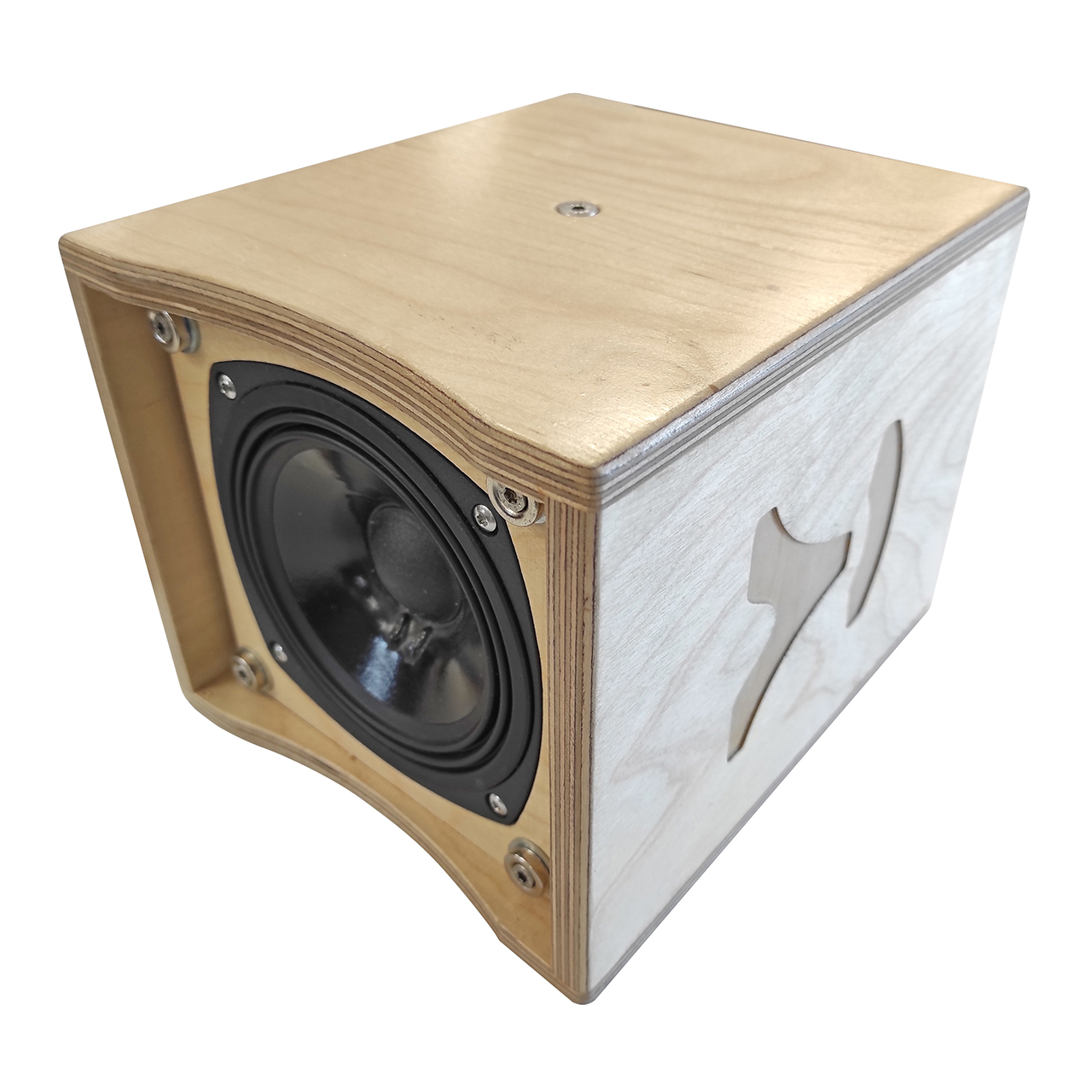

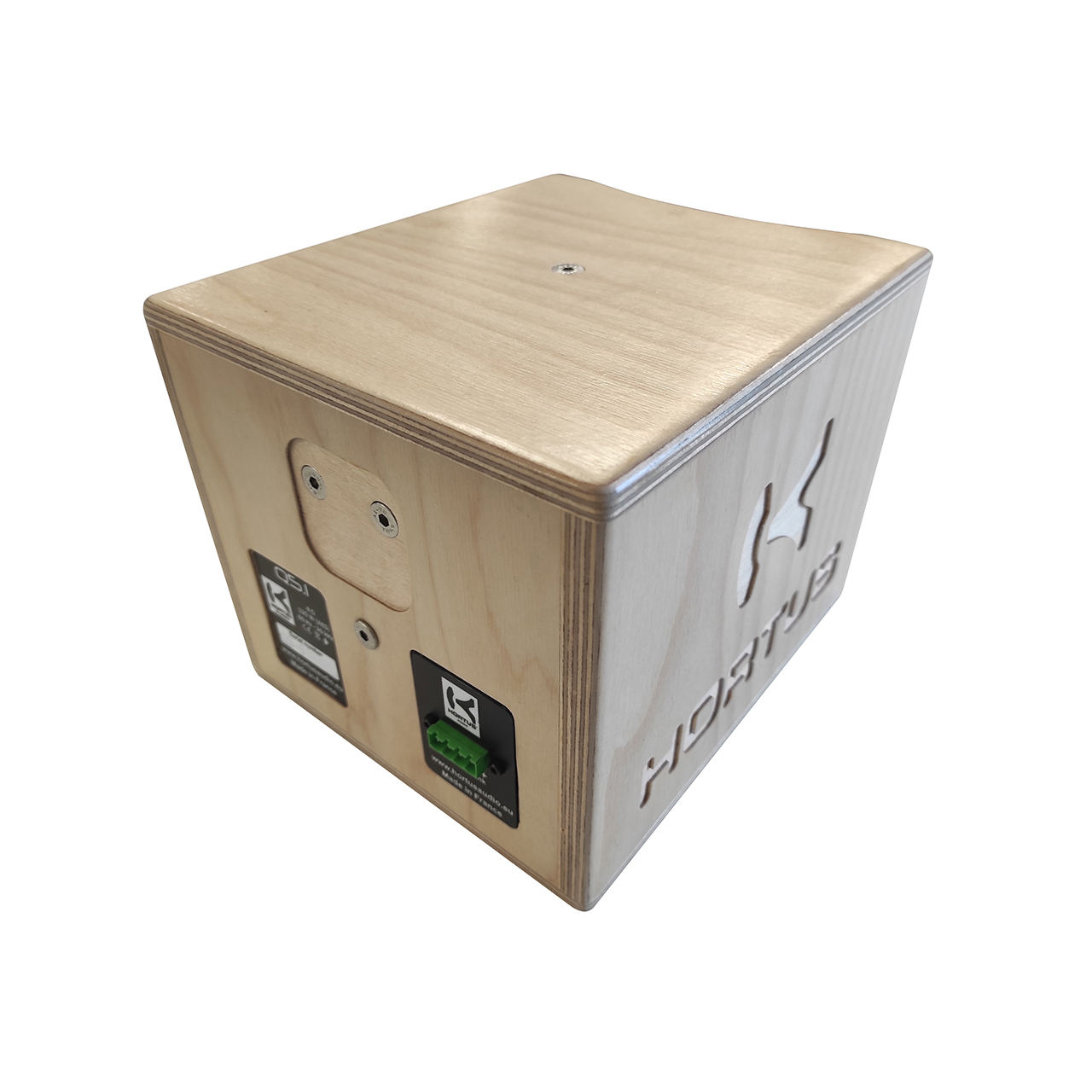

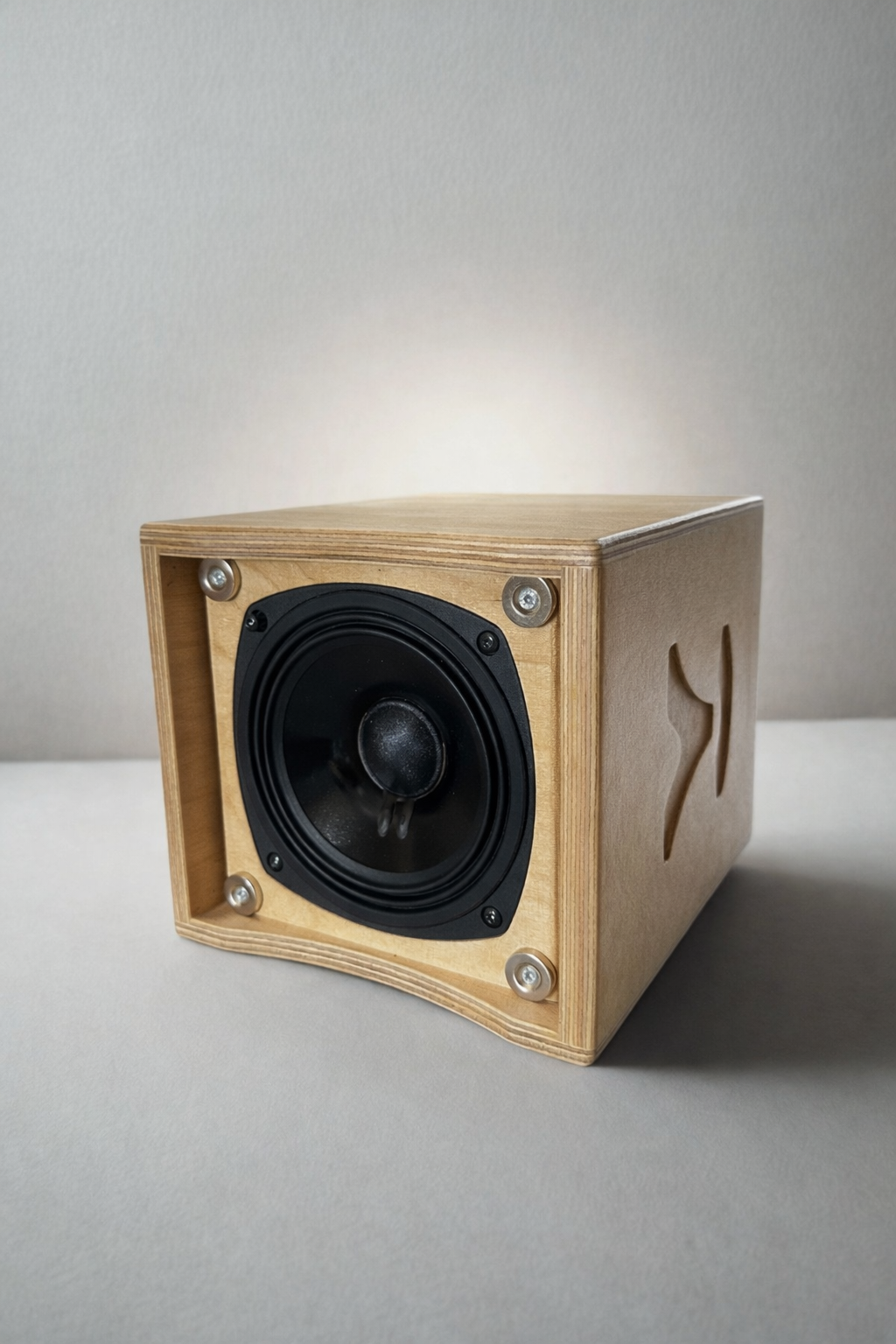

Q5

Multipurpose Speaker / Mini Monitor

Q5-PB Phoenix black 8 Ω
Q5-PW Phoenix white 8 Ω
HO-RI-SR10 Aluminium wall mount optional

(Phoenix connectors included)



Related applications

Specifications

Power: 100 W AES / 200 W Program
Bandwidth (-6dB): 70 Hz to 18 KHz
Sensitivity @ 1W/1m: 90.8 dB
Directivity: 120°H x 120°V Conical
5'' Full-Range Bass-Reflex loaded vented speaker
Connections: Phoenix
Birch Finland 12 mm plywood
Varnished plywood or polyurethane paint
Dimensions: H174 x D220 x W189 mm, 4.2 Kg
Option: Aluminium wall bracket HO-RI-SR10
