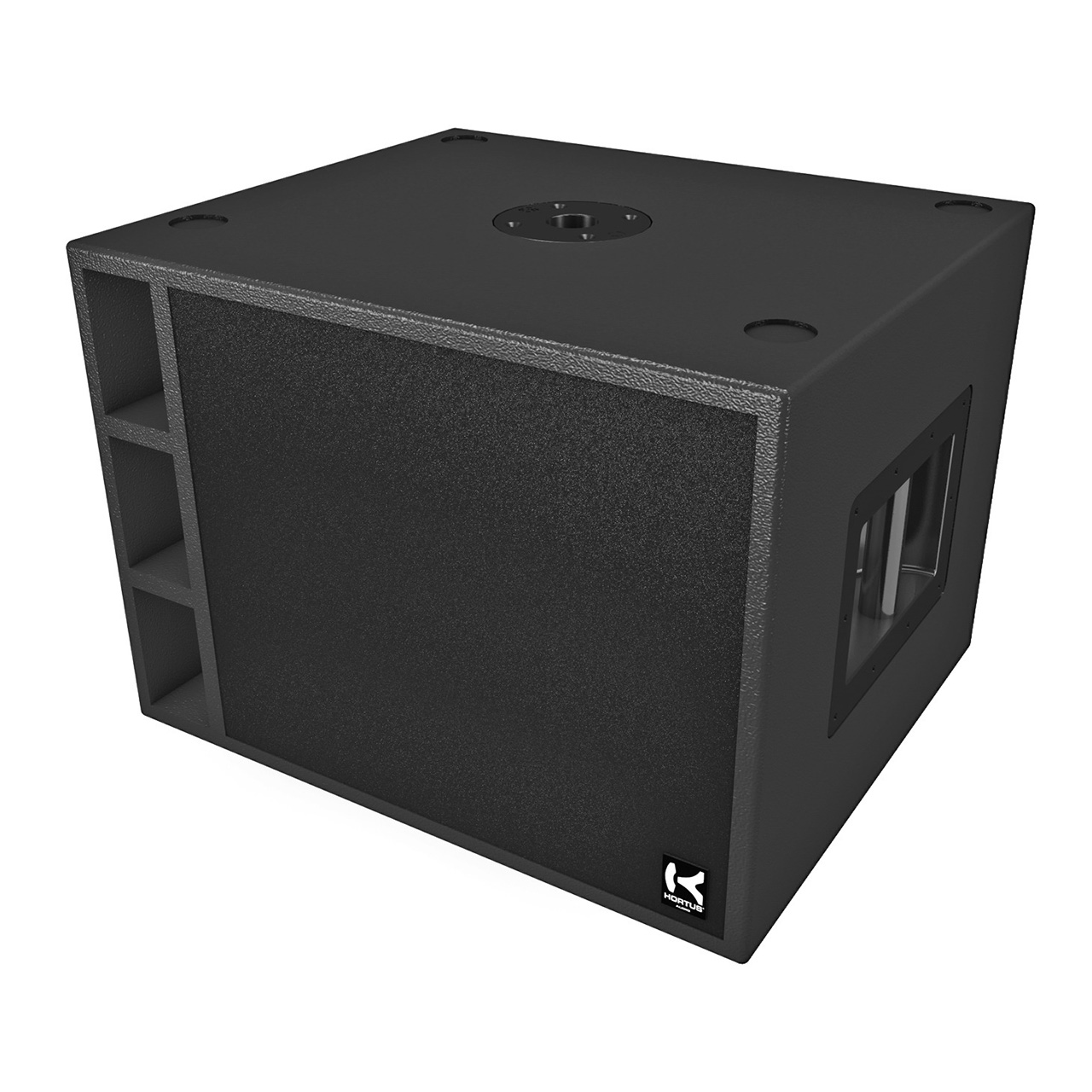

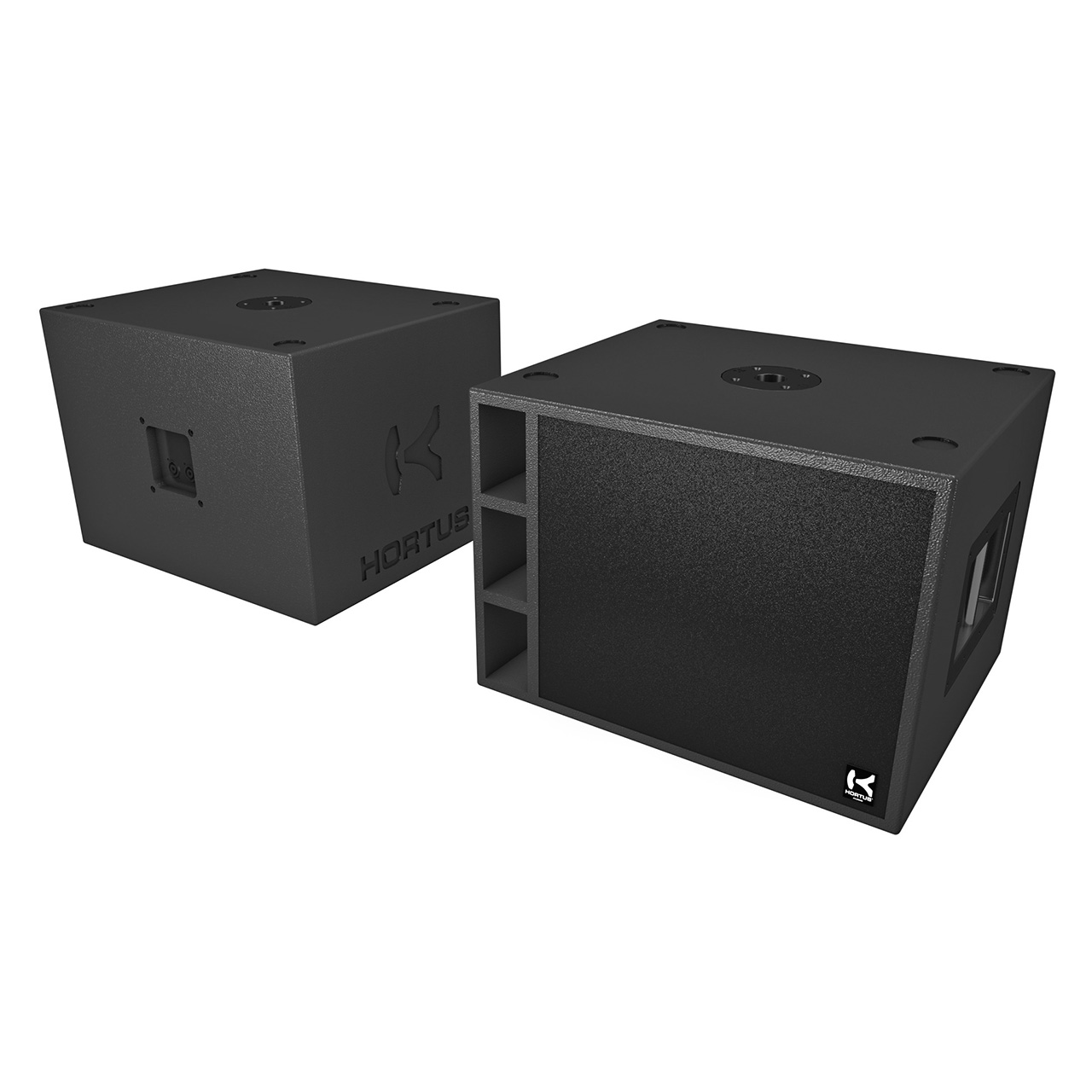

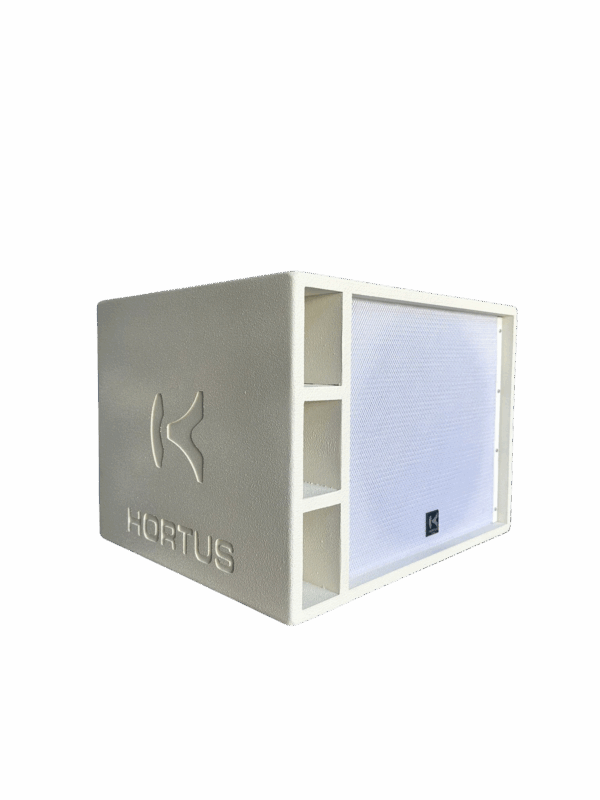

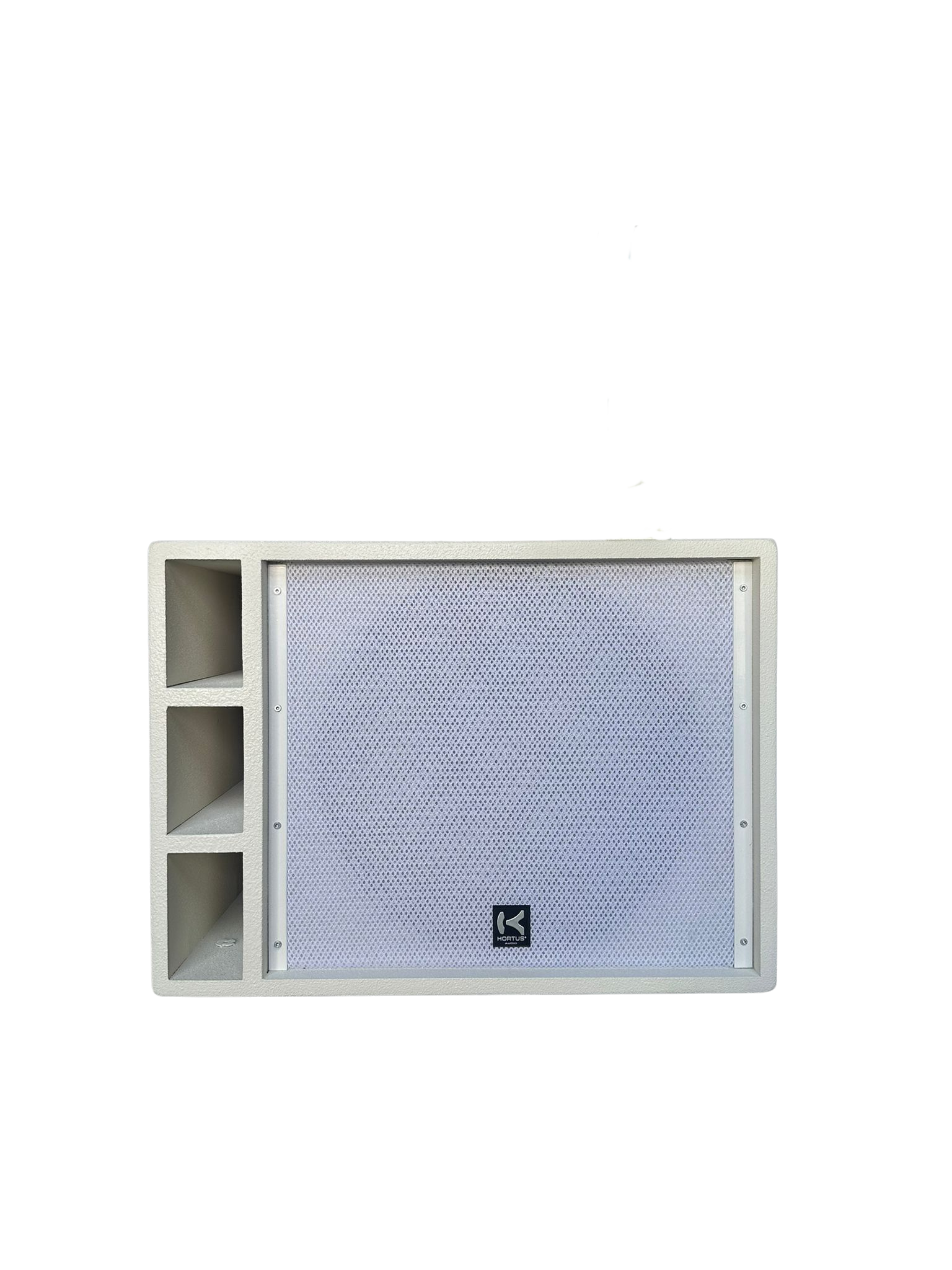

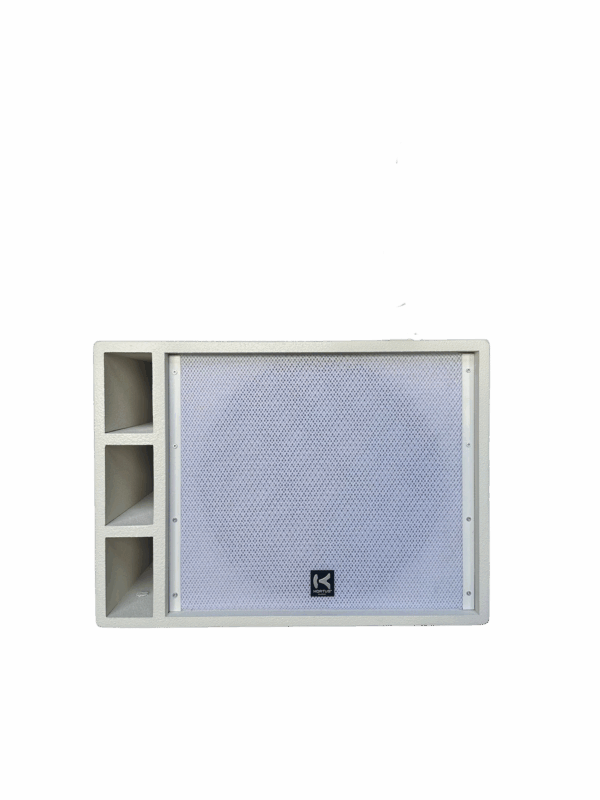

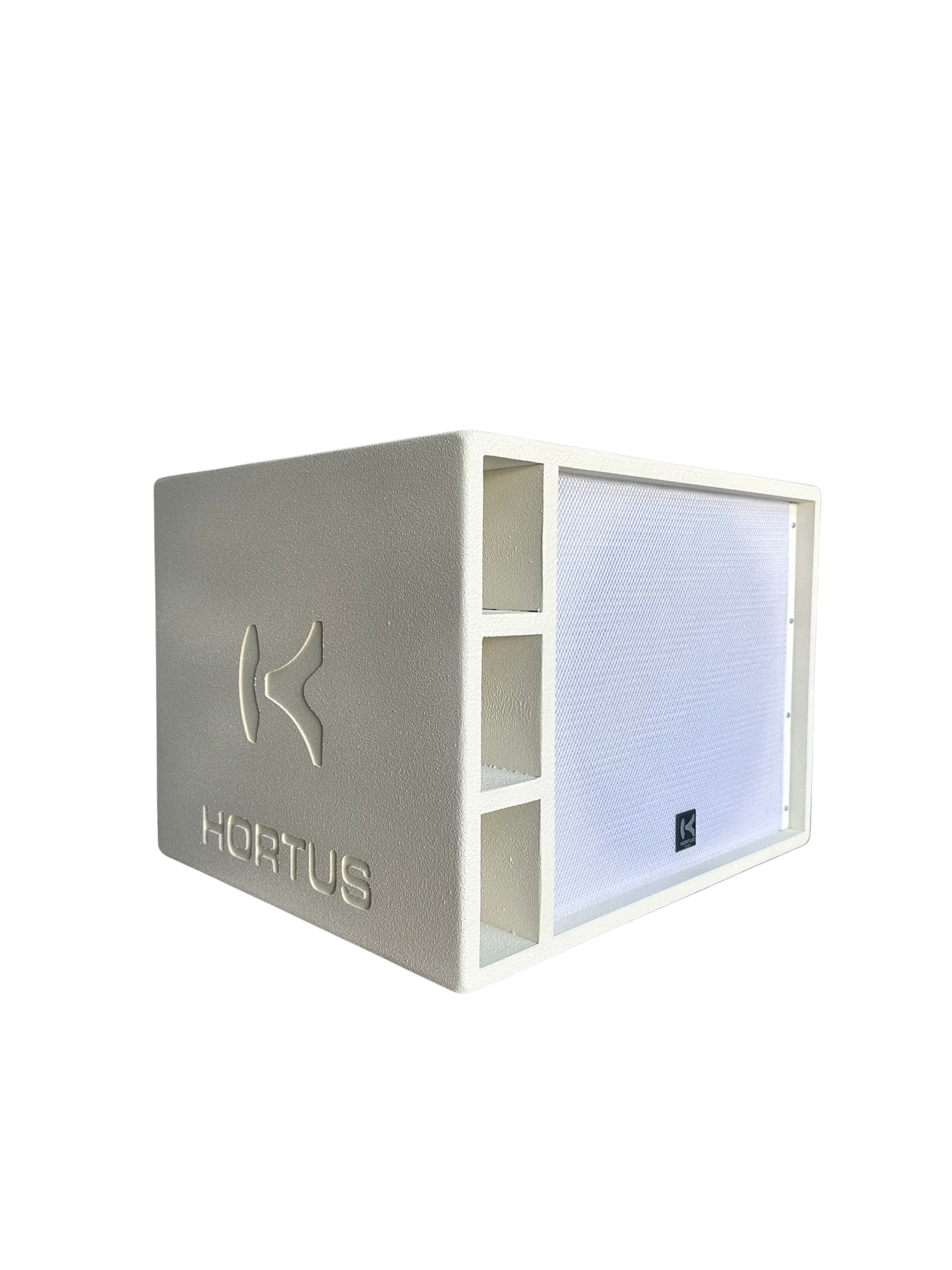

MB1

Passive Bass Cabinet

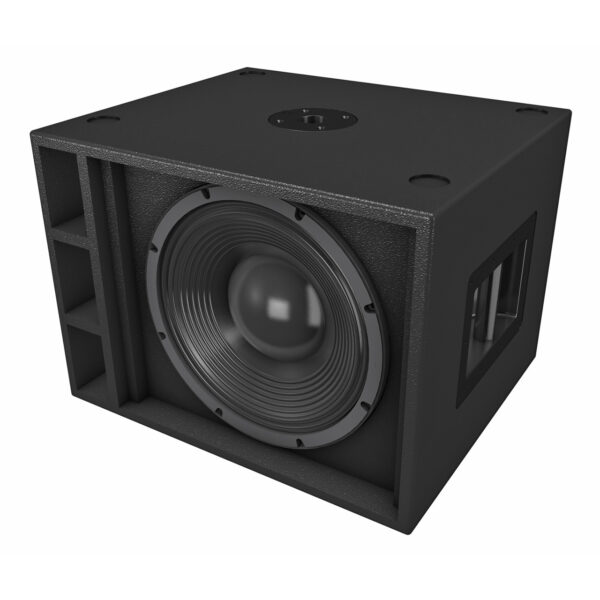

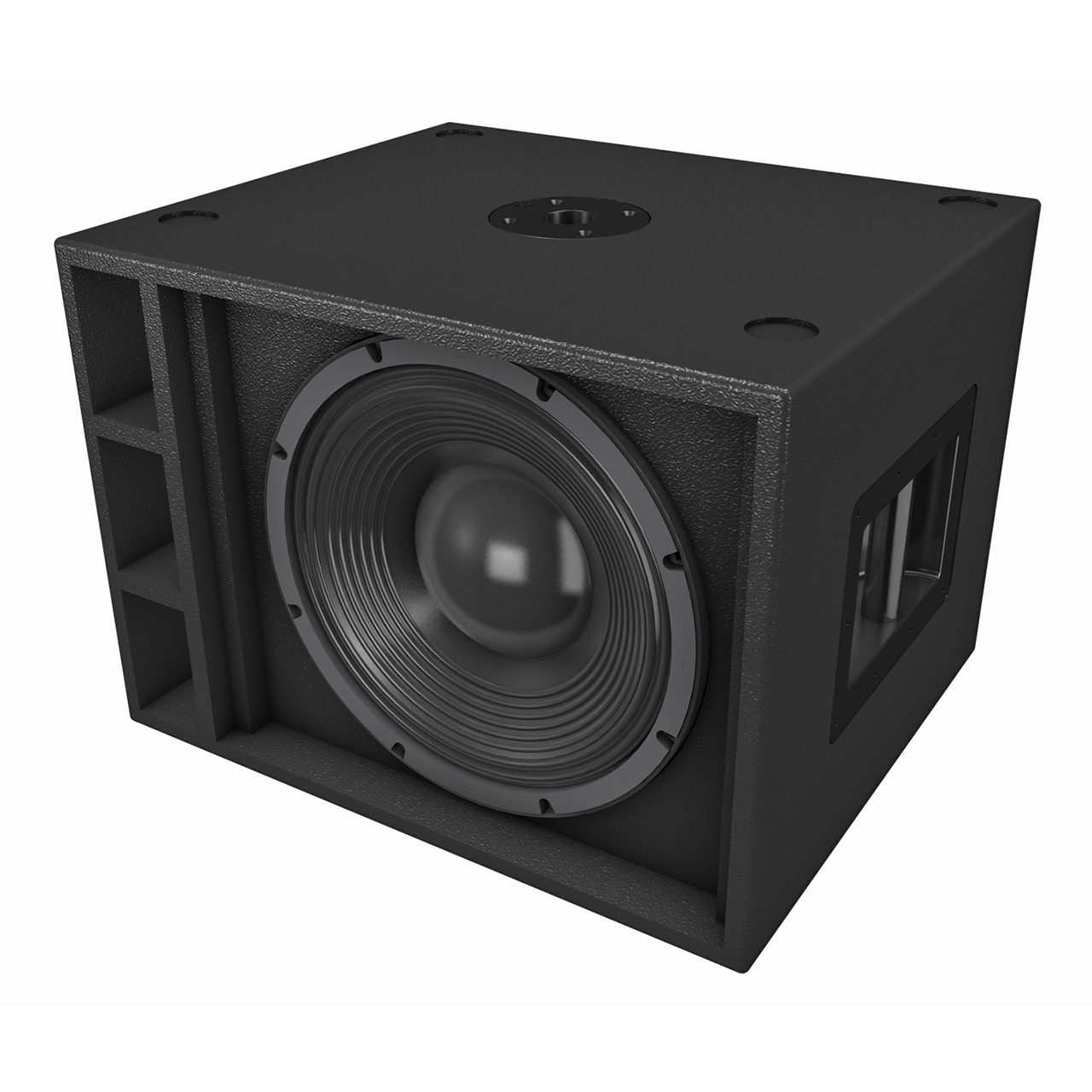

The MB1 bass cabinet enhances the bandwidth of passive speakers down to 45 Hz such as those from our S Series. Powered by a 12′ wide excursion bass transducer, this compact bass cabinet has high power handling and an exceptionally low frequency response.



Best advantages

Optimized ratio: size/weight/power

Easy to integrate in challenging acoustic environments such as TV & theatre

Weatherproof foam (water, dust)



Related applications

Specifications

Puissance AES: 700 W / 8 Ω
Bande passante (-6dB): 45 Hz à 300 Hz
Sensibilité: 97 dB / 1W @1m
Niveau SPL MAX: 128 dB
Directivité: Omnidirectionnelle
LF: 1 x HP 12’’ à charge bass reflex

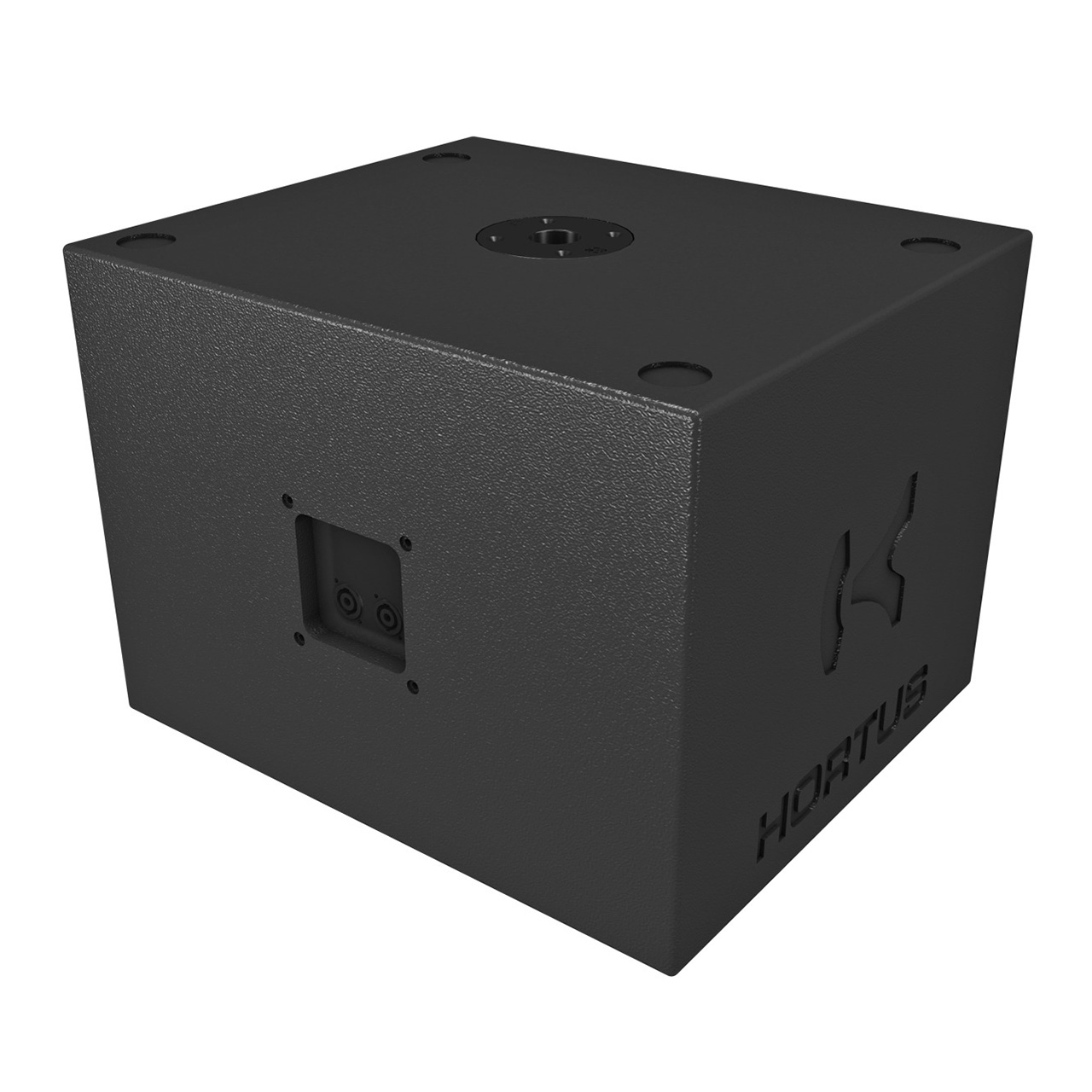

Connexions : 2 speakon NL4MP

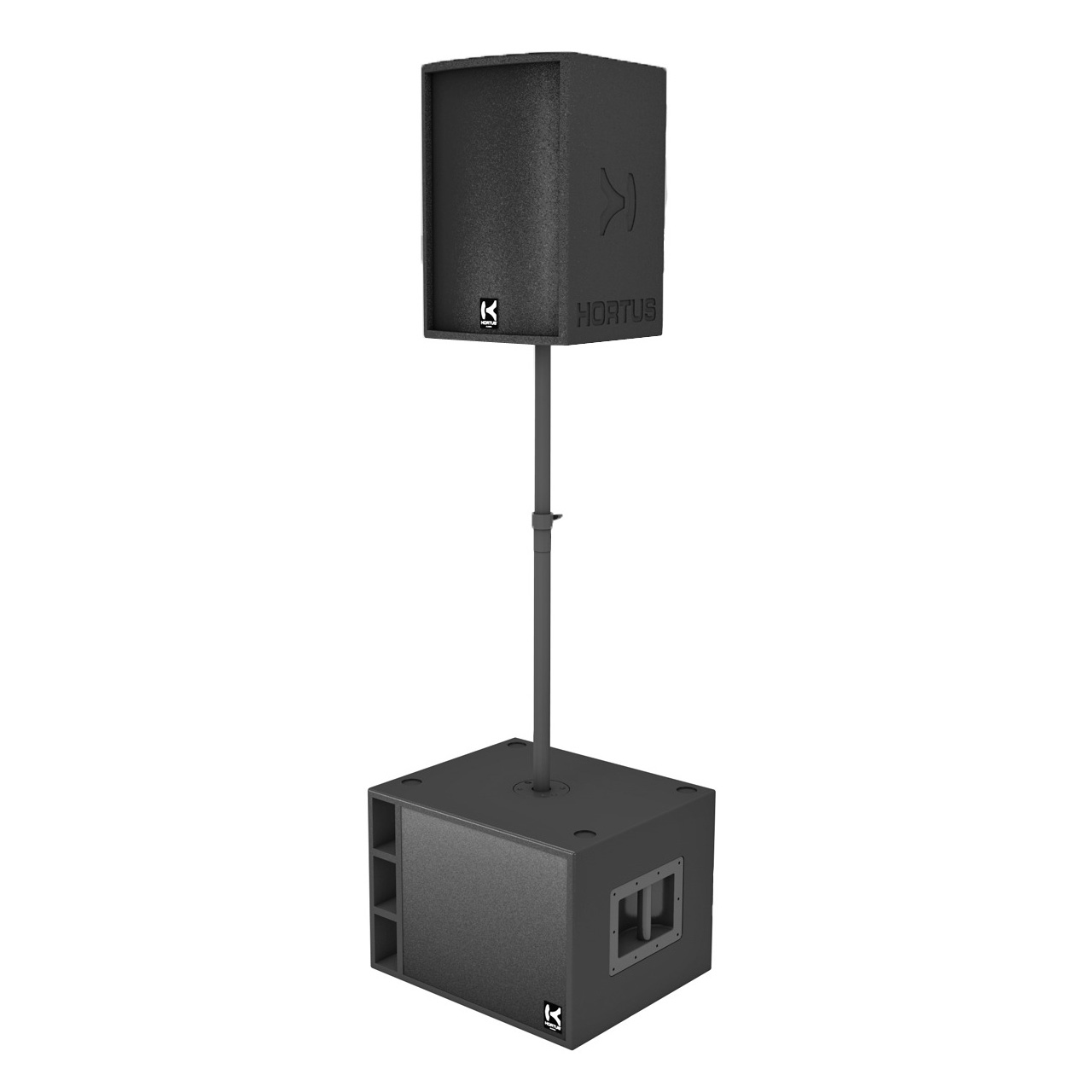

Rigging : 1 embase pour tube diam. 35 mm
CTP: Bouleau de Finlande 15/18 mm Finition : Peinture polyuréthane Dim : H369 x P425 x L500 mm Poids: 22 kg

Product compatibility

AMS1
