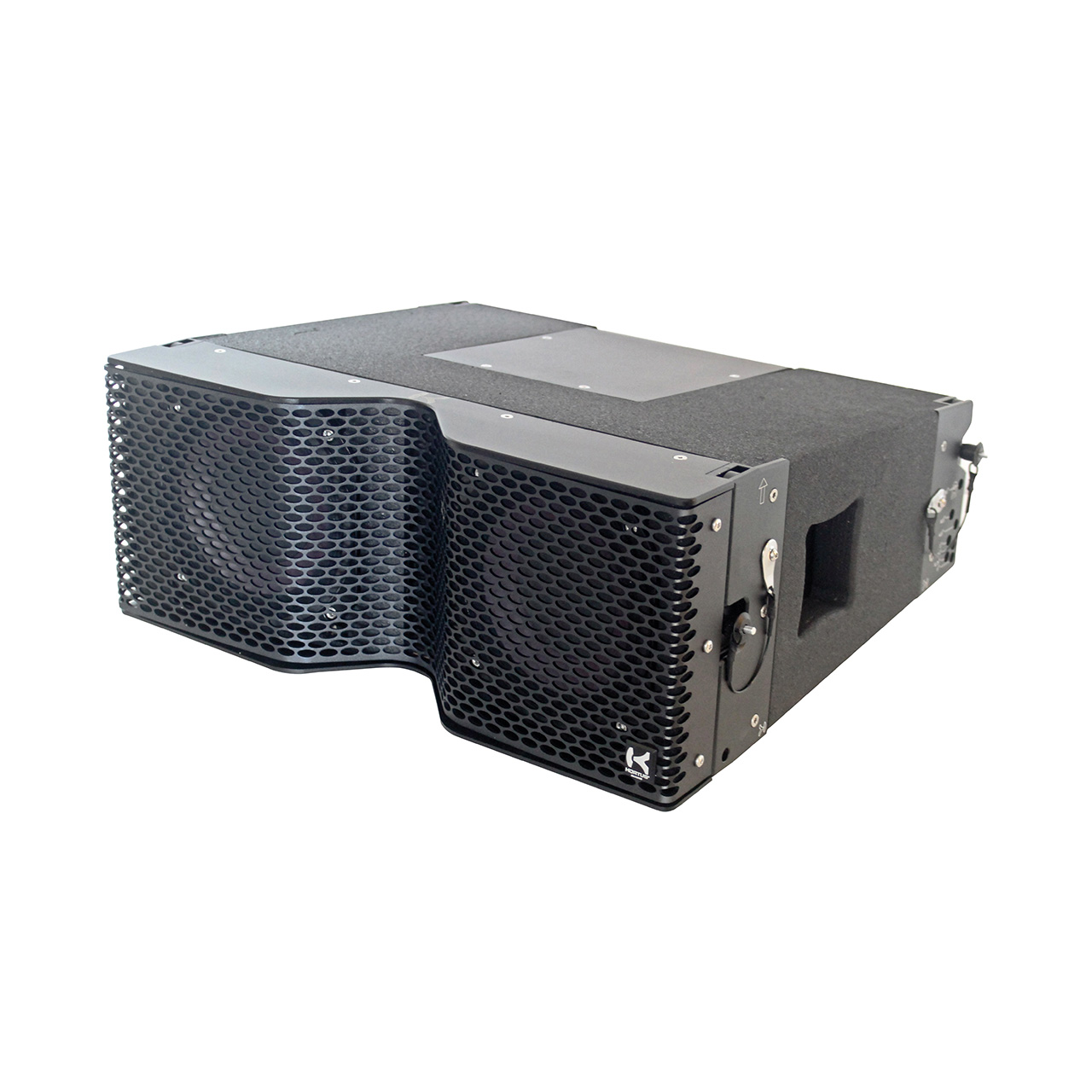

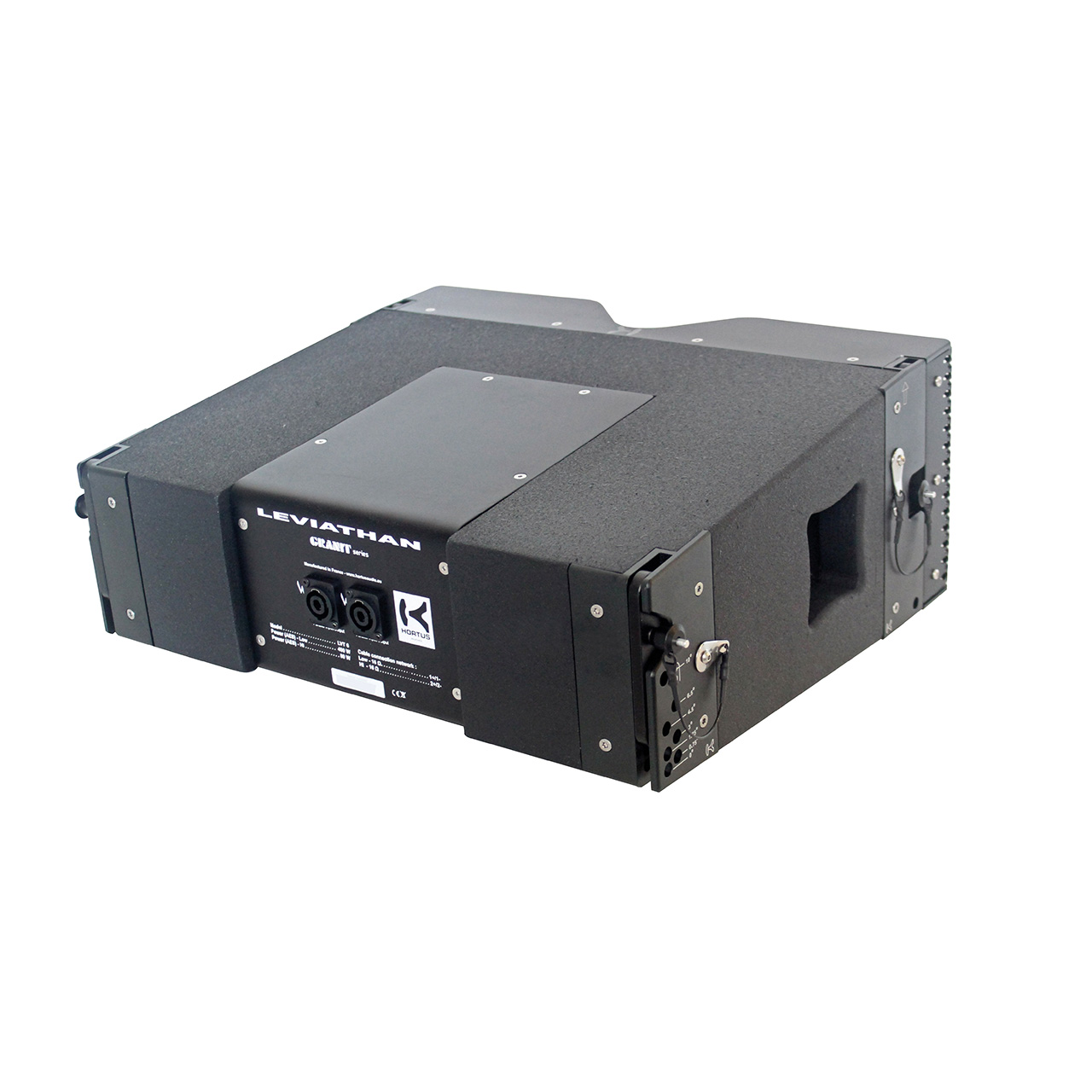

LVT-6

The LVT-6 is a two-way passive line array (a passive 1-way version is also available with built-in crossover). It is powered by the LVT-15 bass cabinet. It can also be powered by the LVT-AMP alongside the LVT-15.

-> See here an overview of the LVT-AMP

With low-frequency (LF) 400W AES and high-frequency (HF) 80W AES, the 16 ohms line array has 2 x 6.5′ speakers and a 1.4′ driver.

The LVT-6 line array allows for optimal use in medium-sized performance halls, amphitheatres, piano bars, conference rooms, outdoor events, including concerts with a capacity between 450 and 2000 people.

Key features

Power peak LF-MF: 1000W AES; HF: 160W AES

Crossover frequency 5 kHz

Retractable rigging with spring



Specifications

AES Power: LF 400 W / HF 80 W / 16 Ω
Bandwidth (-6dB): 180 Hz to 20 KHz
Sensitivity:
LF : 100 dB / 1W @1m
HF: 108 dB / 1W @1m
SPL MAX level: 123 dB
Directivity (-6dB): 100° H
Intercabinet angle adjustments from 0° to 10° in clip steps
Angles: 0° / 0.75° / 1.75° / 3° / 4.5° / 6.5° / 10°
MF: 2 x 6,5’’ vented enclosure
HF: 1 x1,4’’ compression
Connections: 2 Speakon NL4MP
- Rigging integral 4 points flying system
- 15/30 mm baltic birch wood
- Finished polyurethane painting
- Dim. H180 x D390 x W450 mm / Wht 16 kg

Product compatibility

LVT-15

LVT-AMP

Downloads


Available options
LVT-6-P: Passive 1-way with integrated crossover
