LVT-15

LVT-15 - Image 2

LVT-15

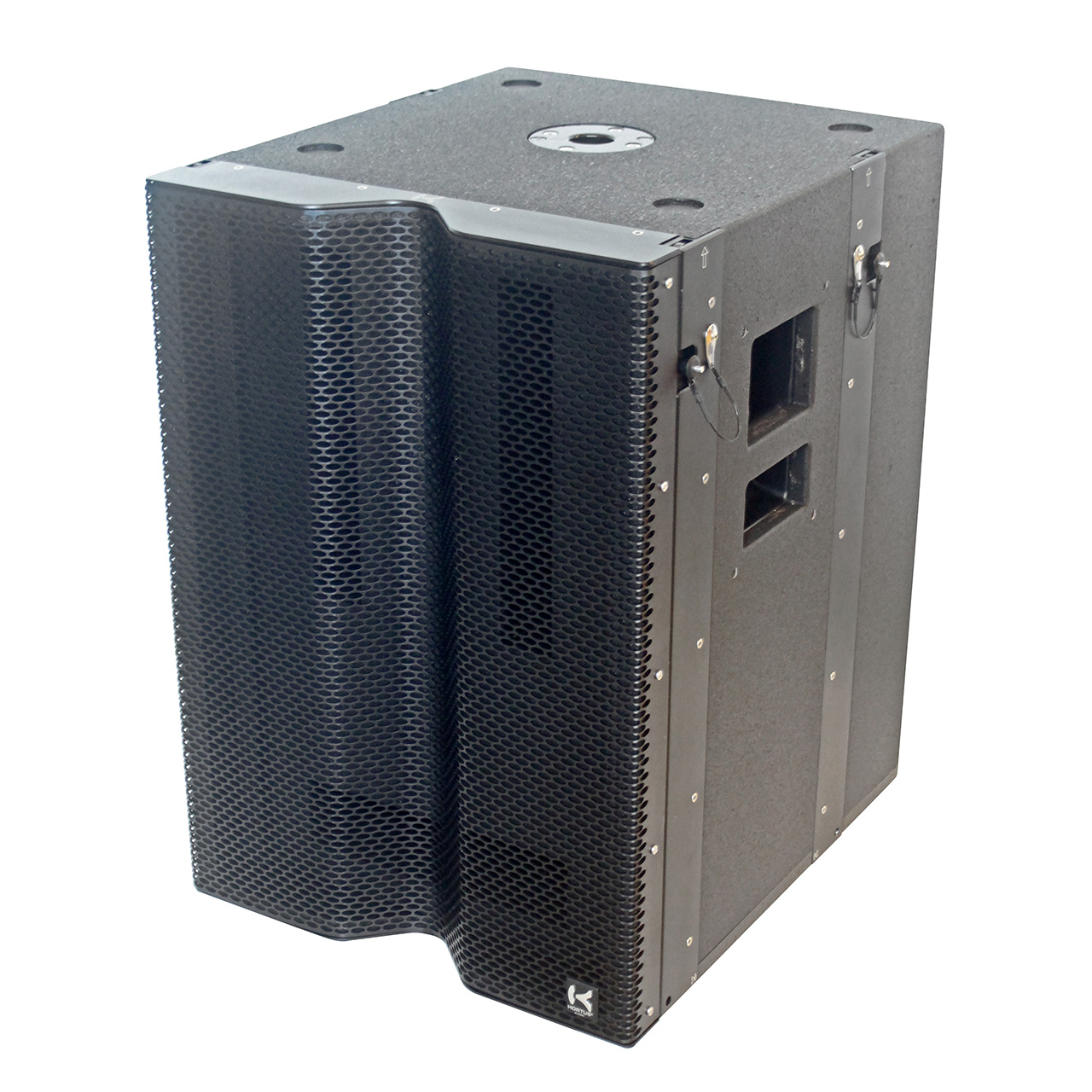

Bass Cabinet for LVT-6

The LVT-15 is a 1000W AES bass cabinet designed to power the LVT-6. It can also be powered by the LVT-AMP alongside multiple LVT-6.

-> See LVT-AMP

Key features

LF 15’’ double wave loudspeaker

180° directivity

SPL maximum level: 127 dB

Auditoriums & Concert Halls

Theaters

Specifications

AES Power: 1000 W / 8 Ω
Bandwidth (-6dB): 40 Hz to 300 Hz
Sensitivity: 97 dB / 1W @1m
SPL MAX Level: 127 dB
Directivity: 180° cardioid
LF: 1 x 15’’ band pass 6th order enclosure
- Rigging Integral 4 points flying system
Connections: 2 Speakon NL4MP
- 15/30 mm baltic birch wood
- Finished polyurethane painting
- Dim. H644 x D524 x W450 mm / Wht 47 kg

Product compatibility

LVT-6

LVT-AMP

Downloads

Datasheet

High res.

Available options
LVT-6-P: Passive 1-way with integrated crossover

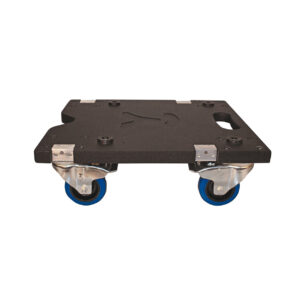

Accessories
