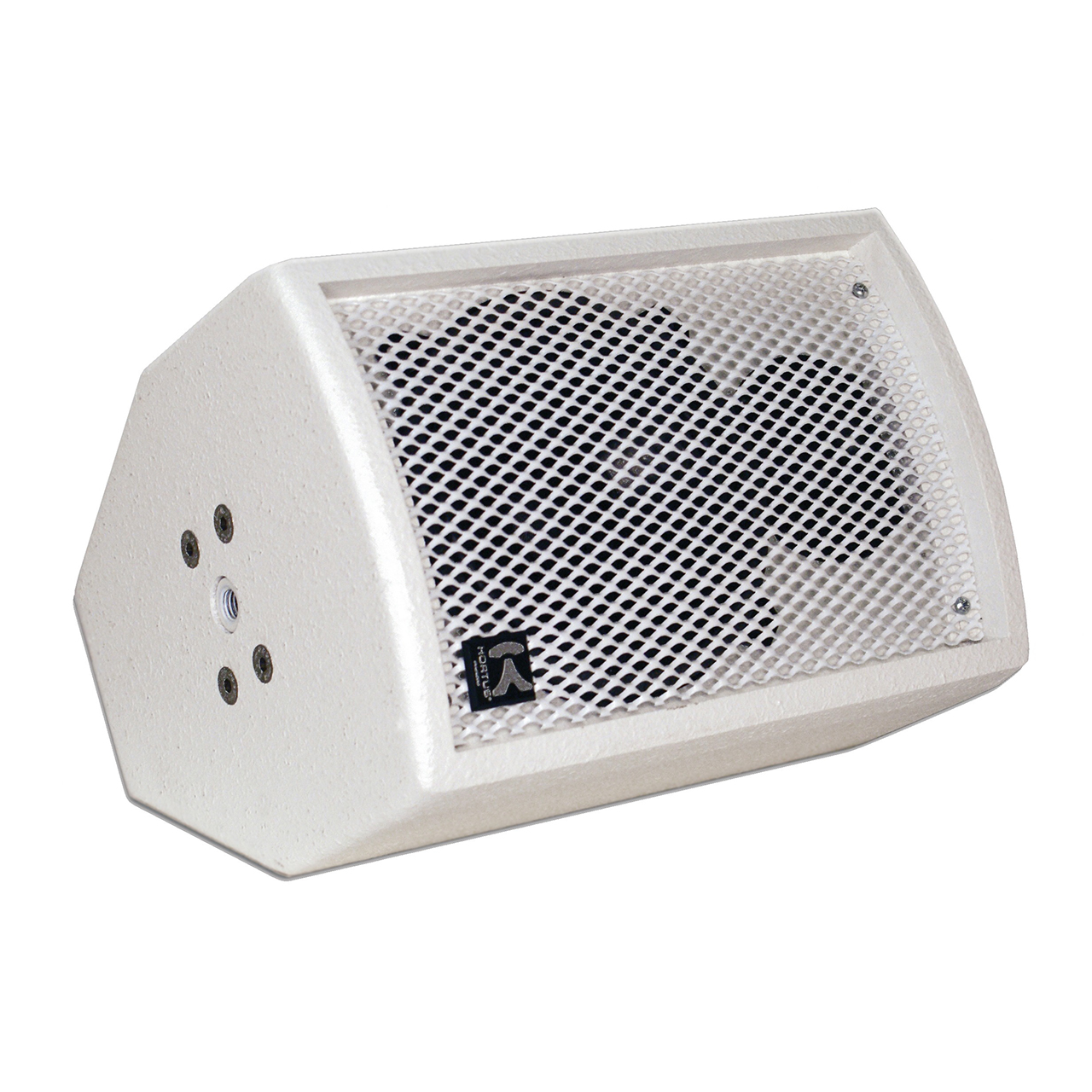

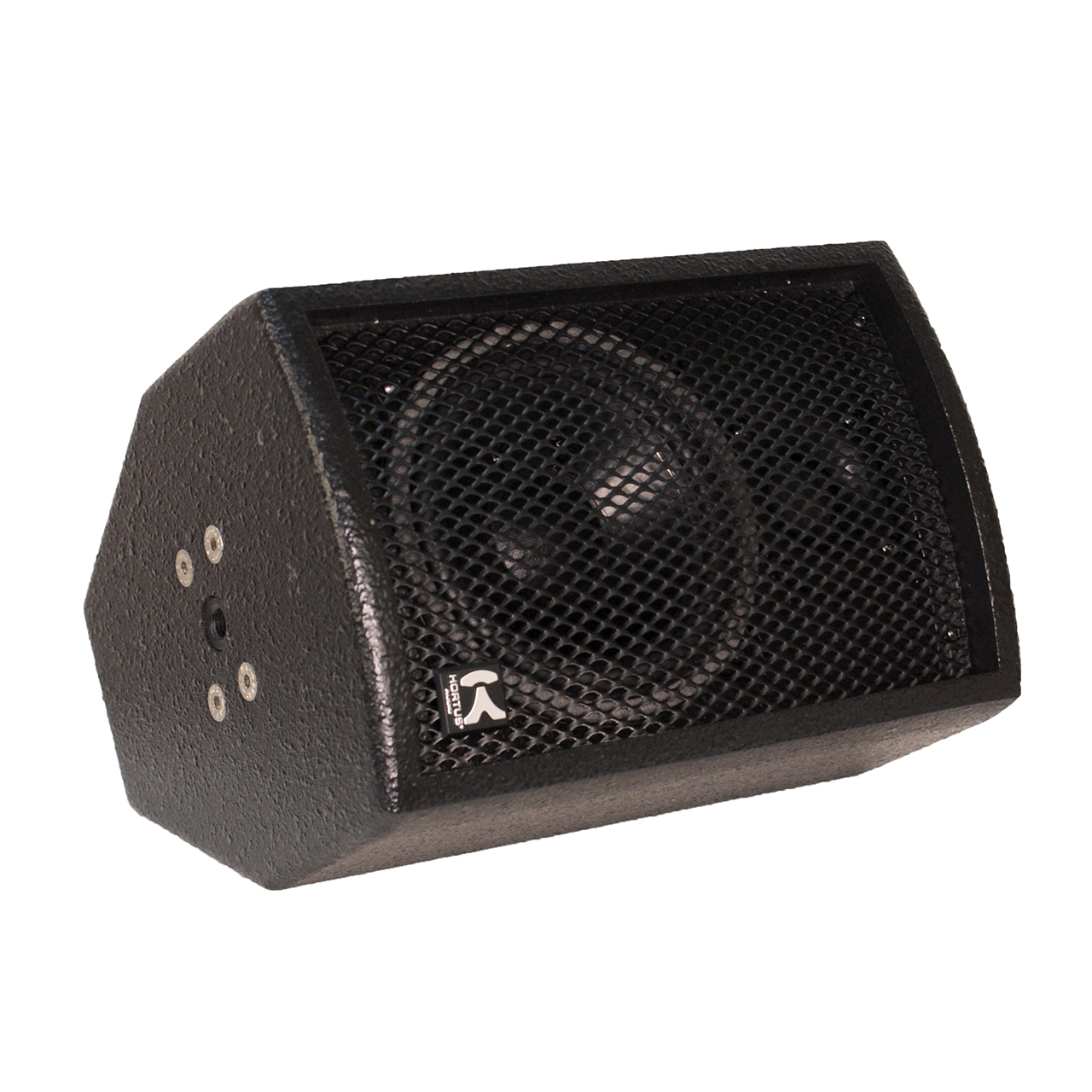

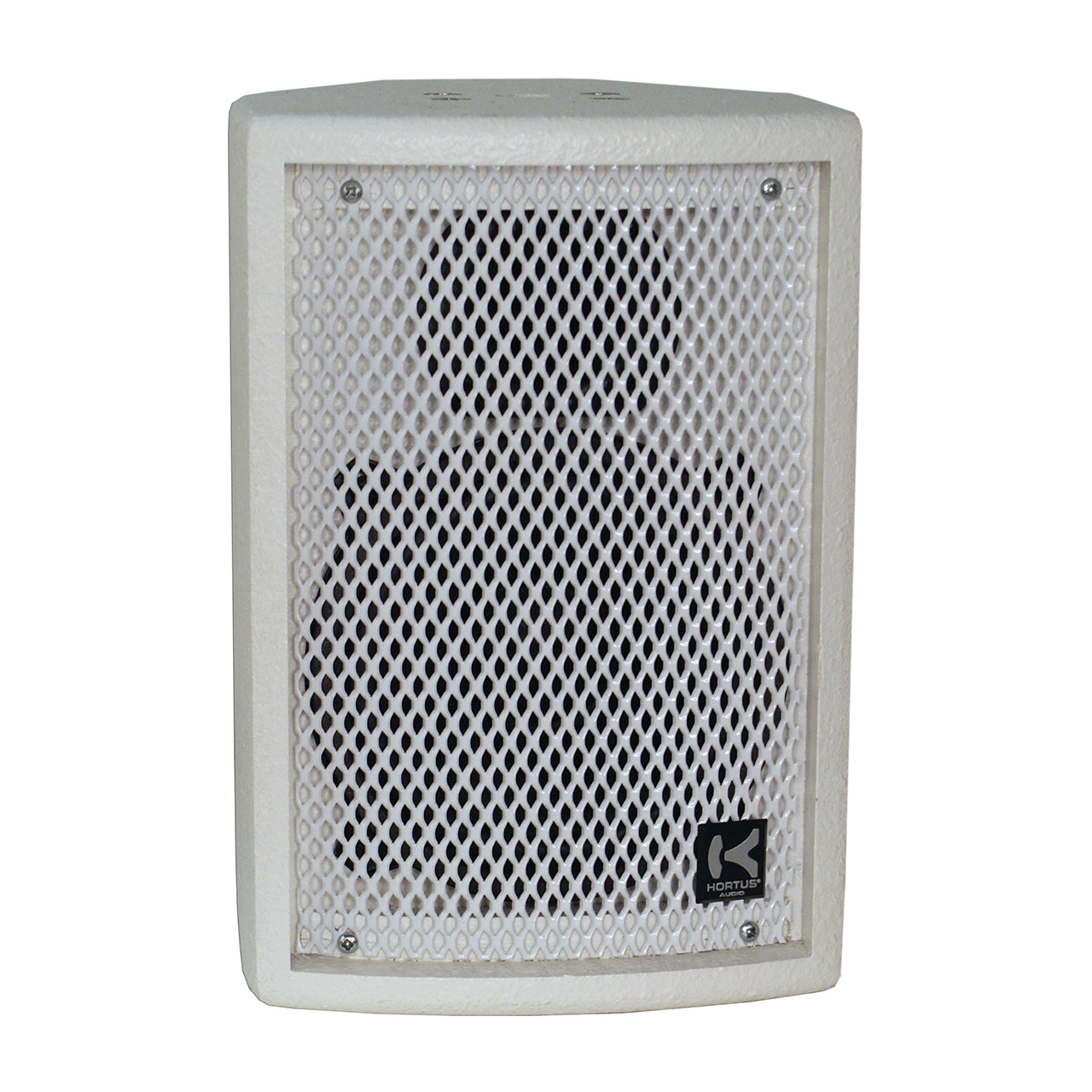

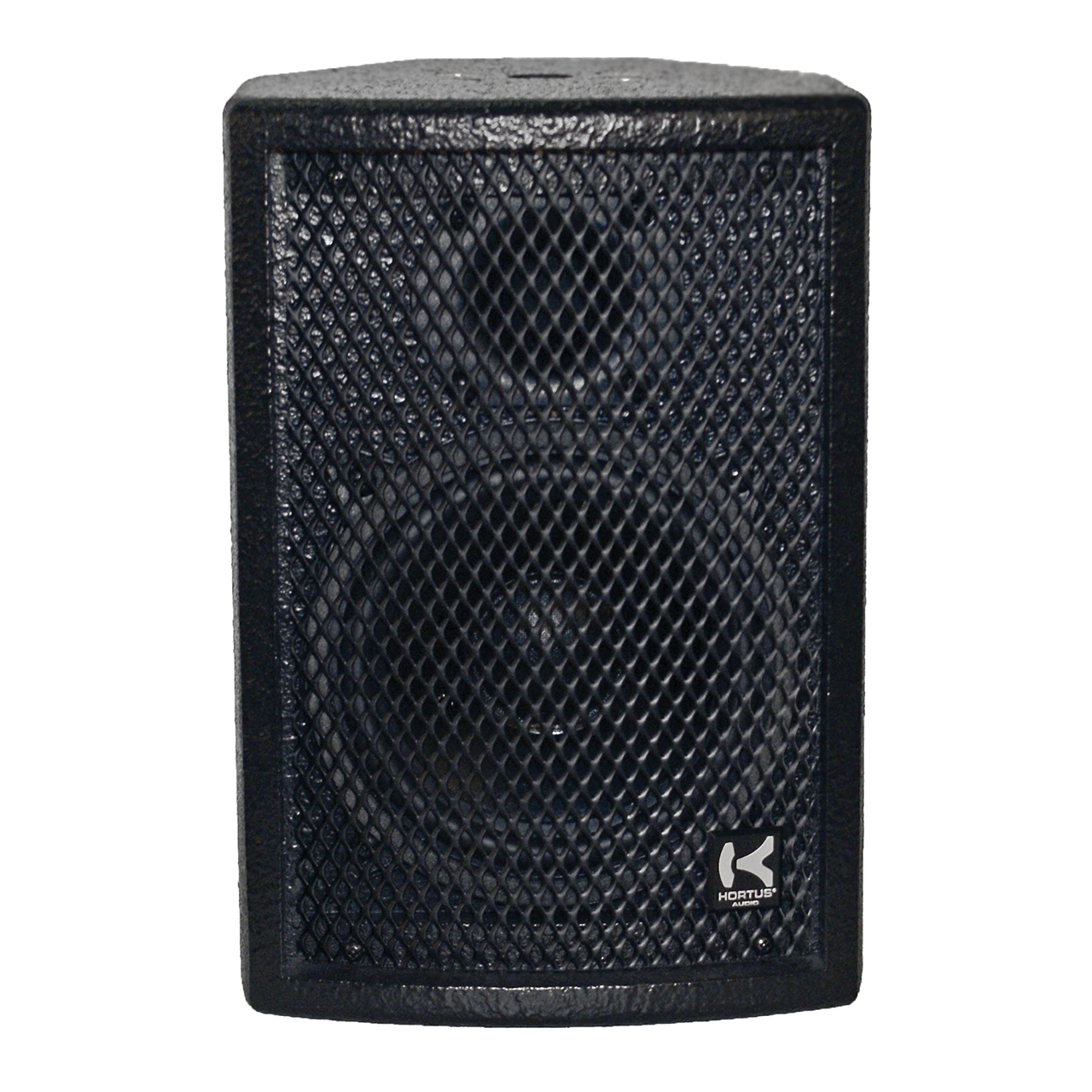

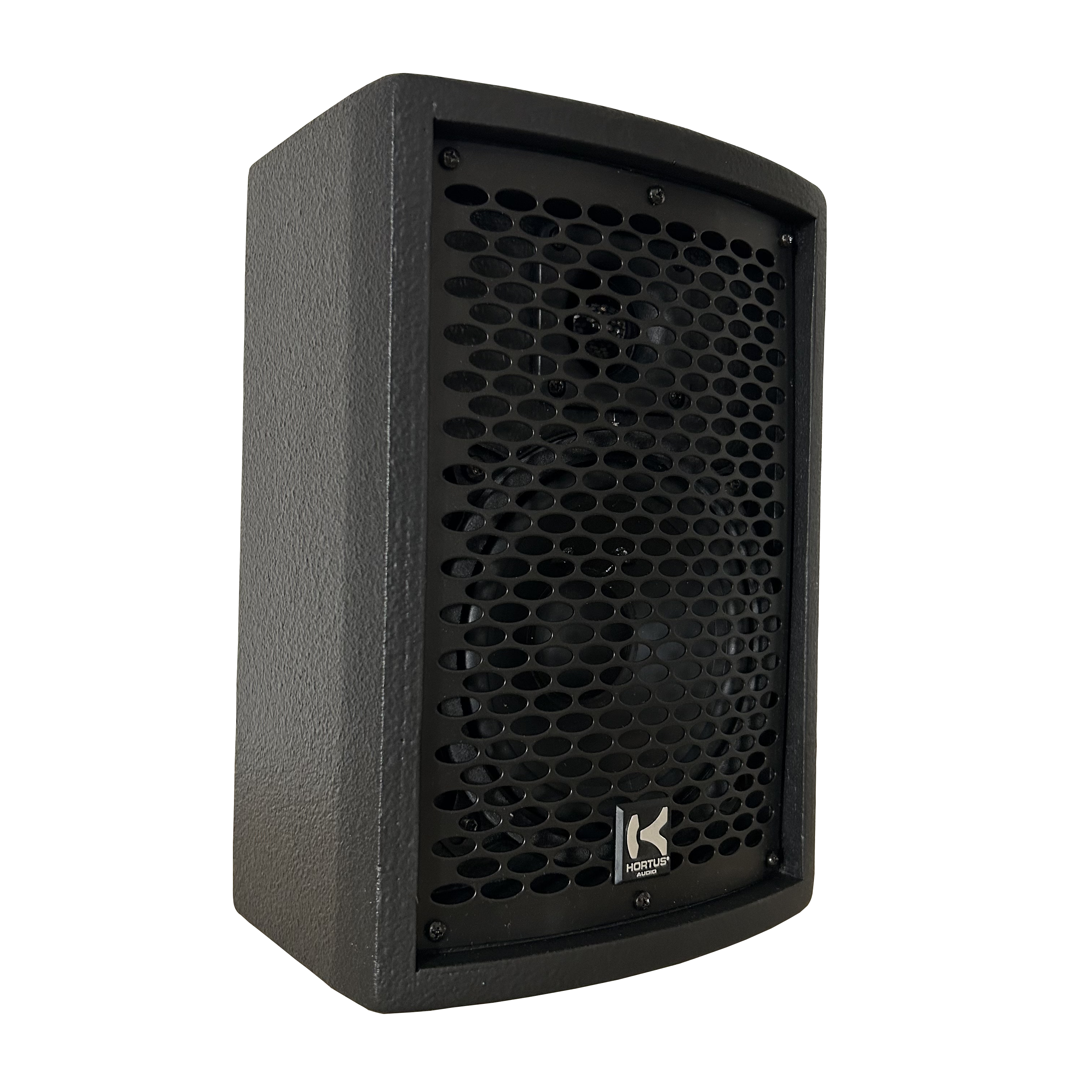

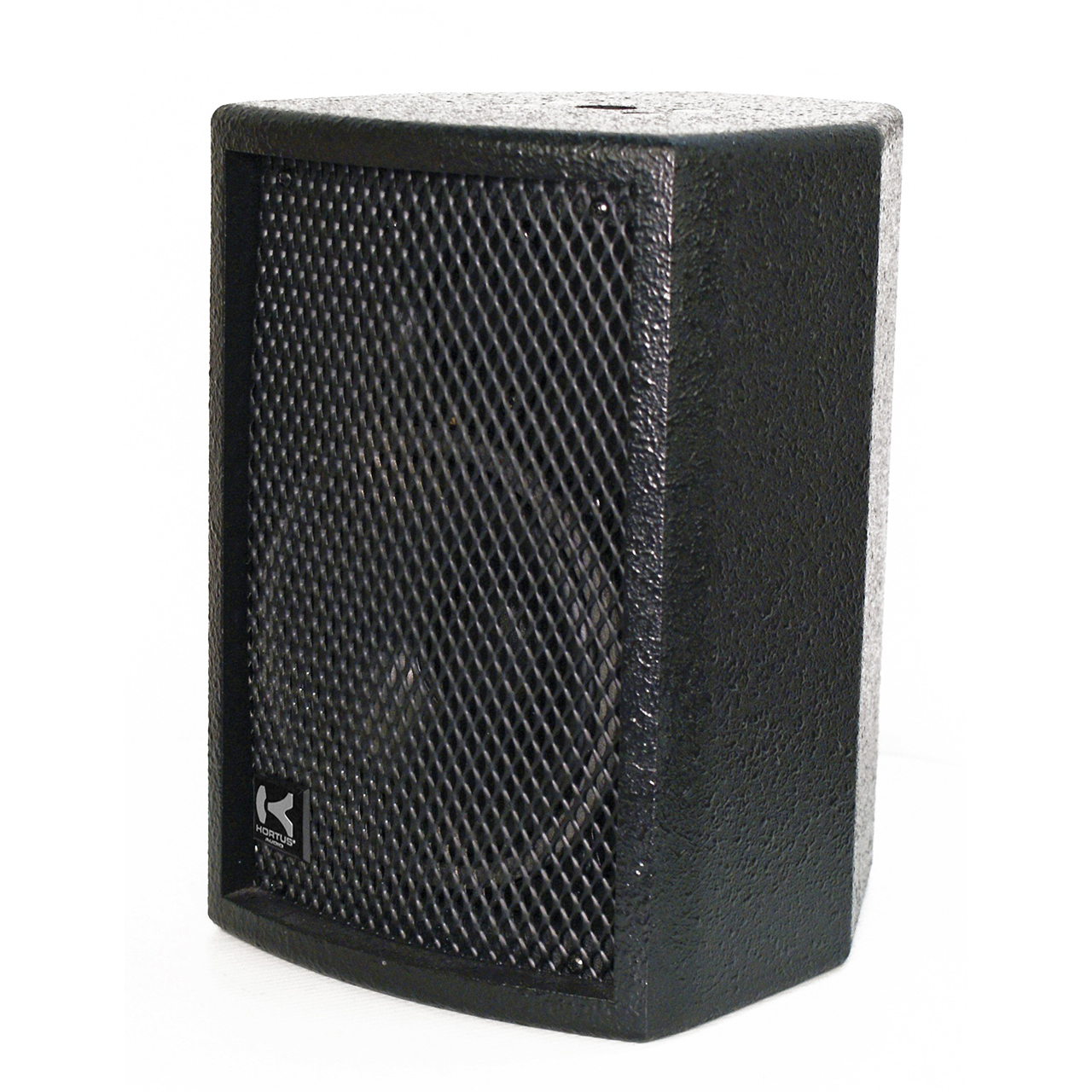

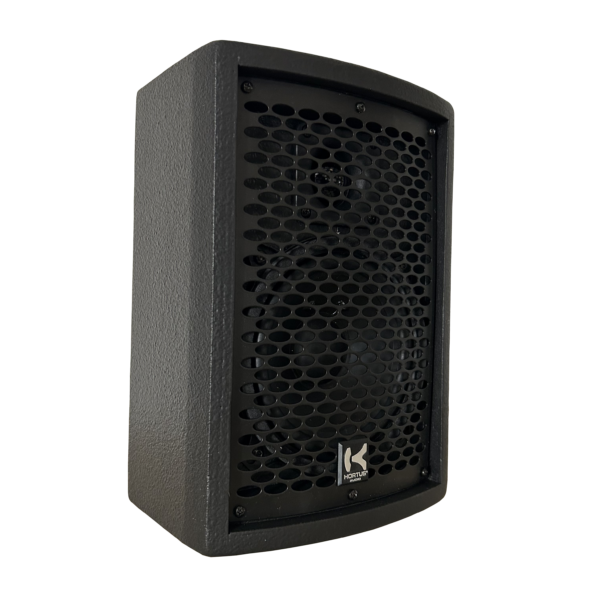

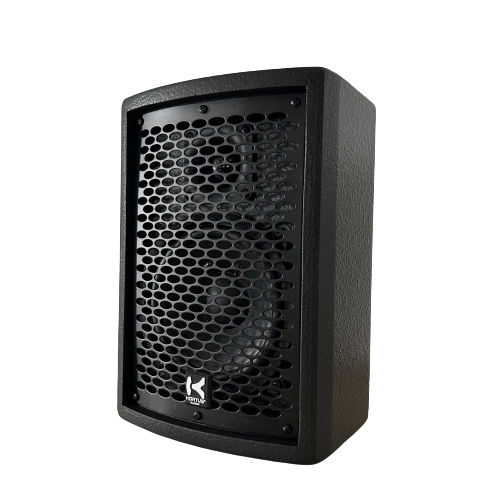

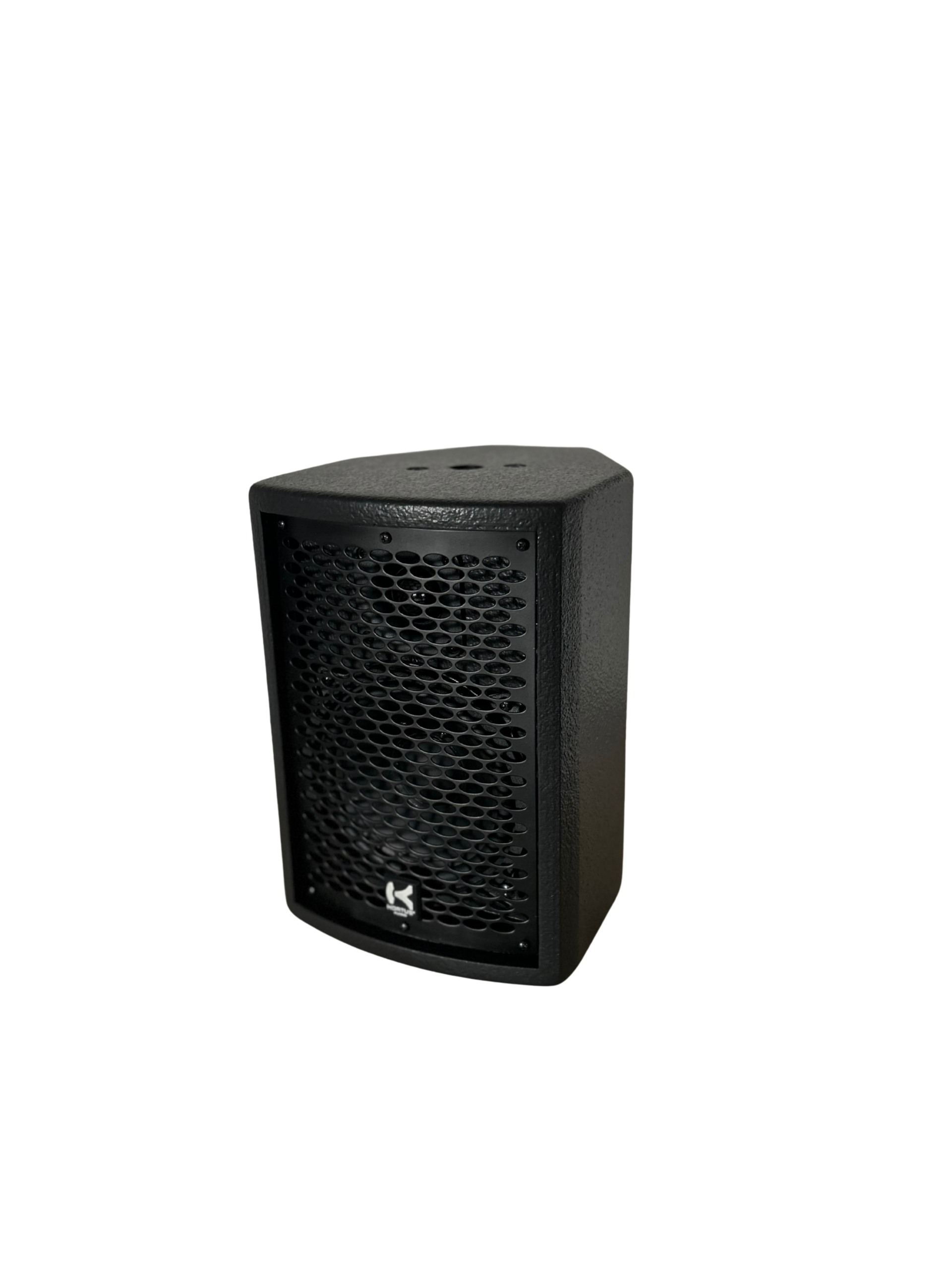

CT15

2-Way Passive Speaker

The CT15 is a compact public address speaker specifically designed for fixed installations. With its multi-rigging accessories, the 2-way passive speaker is primarily applicable to hotel settings, houses of worship, and shopping centres.



Best advantages

Available in 8 or 16 ohms

Excellent power handling

Humidity protected loudspeakers and UV resistant treatment



Specifications

Version 8 Ω: 120 W
Version 16 Ω: 100W
Bandwidth (-6dB): 85 Hz to 21kHz
Sensitivity: 90 dB / 1W @1m
SPL MAX level: 109 dB
Directivity (-6dB): 70° H
LMF: 1 x 5’’ closed enclosure
HF: 1 x 0,25’’ neodym tweeter
Rigging : 2 X M10 + 2 X M6
12 mm baltic birch wood
Finished polyurethane painting
Dim. H238 x D192 x W167 mm / 3,5 kg

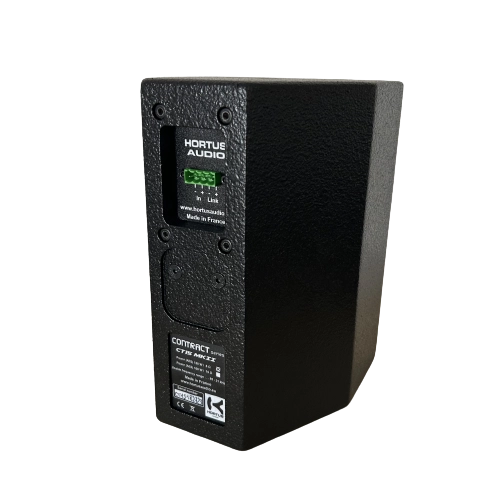

Phoenix Version: 4 pts Phoenix + 2 x M10 Speakon Version: 2 Neutrik NL4MP

Product compatibility

AMS1

CT2.1

CT50S

Downloads

Available options
CT15-PB08 Phoenix 8 Ω Black
CT15-SB08 Speakon 8 Ω Black
CT15-PB16 Phoenix 16 Ω Black
CT15-SB16 Speakon 16 Ω Black

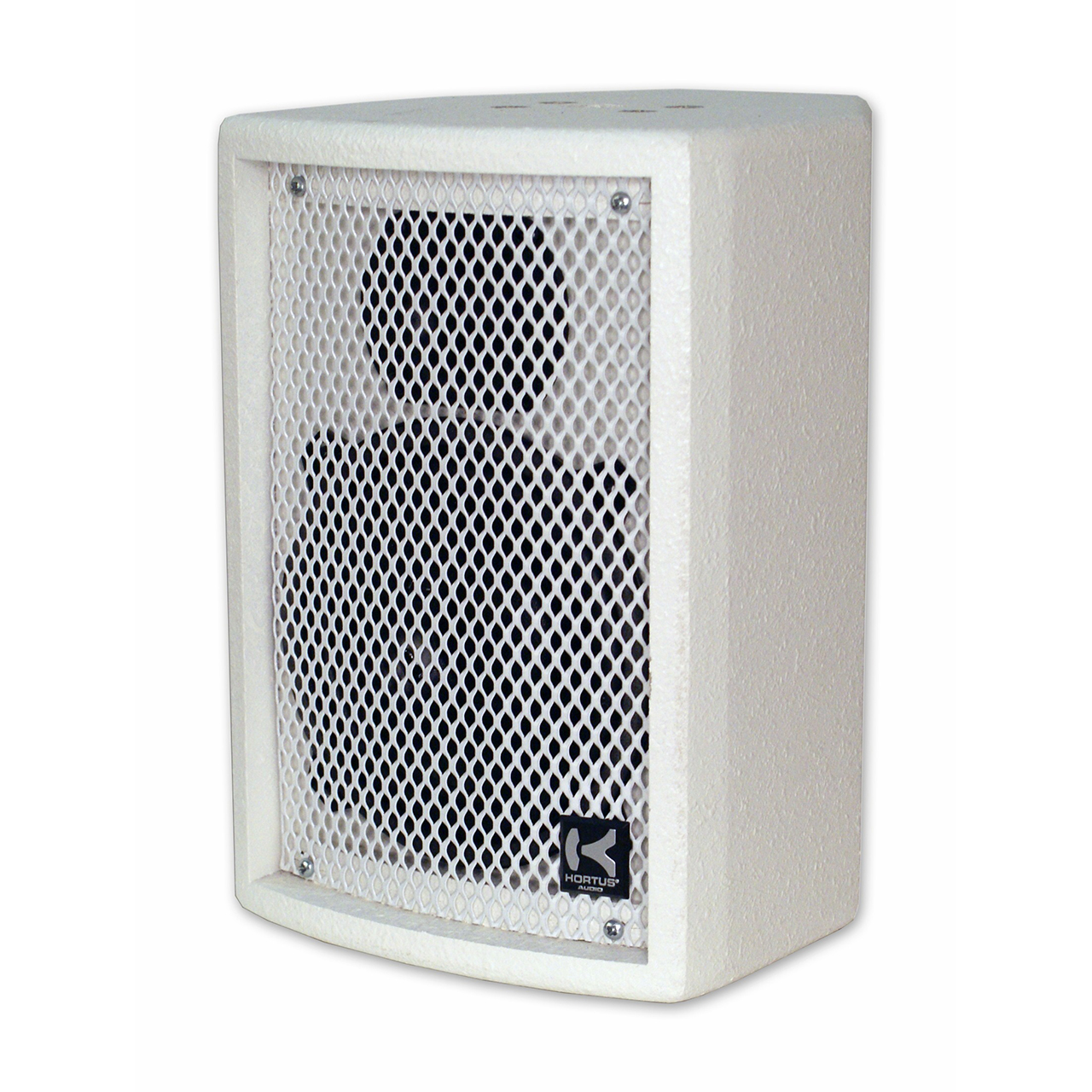

CT15-*W** White

*For Phoenix versions all the connectors are included.
