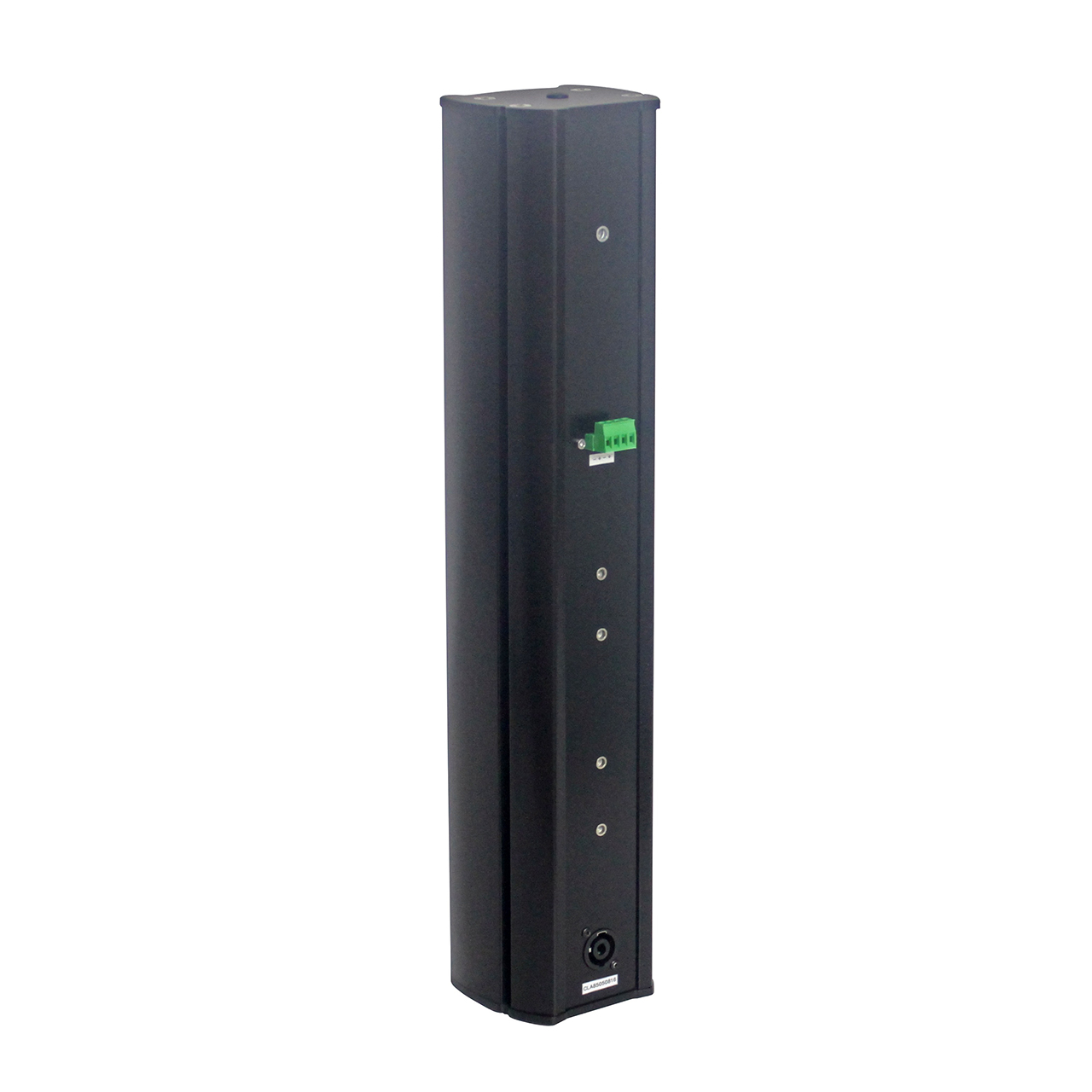

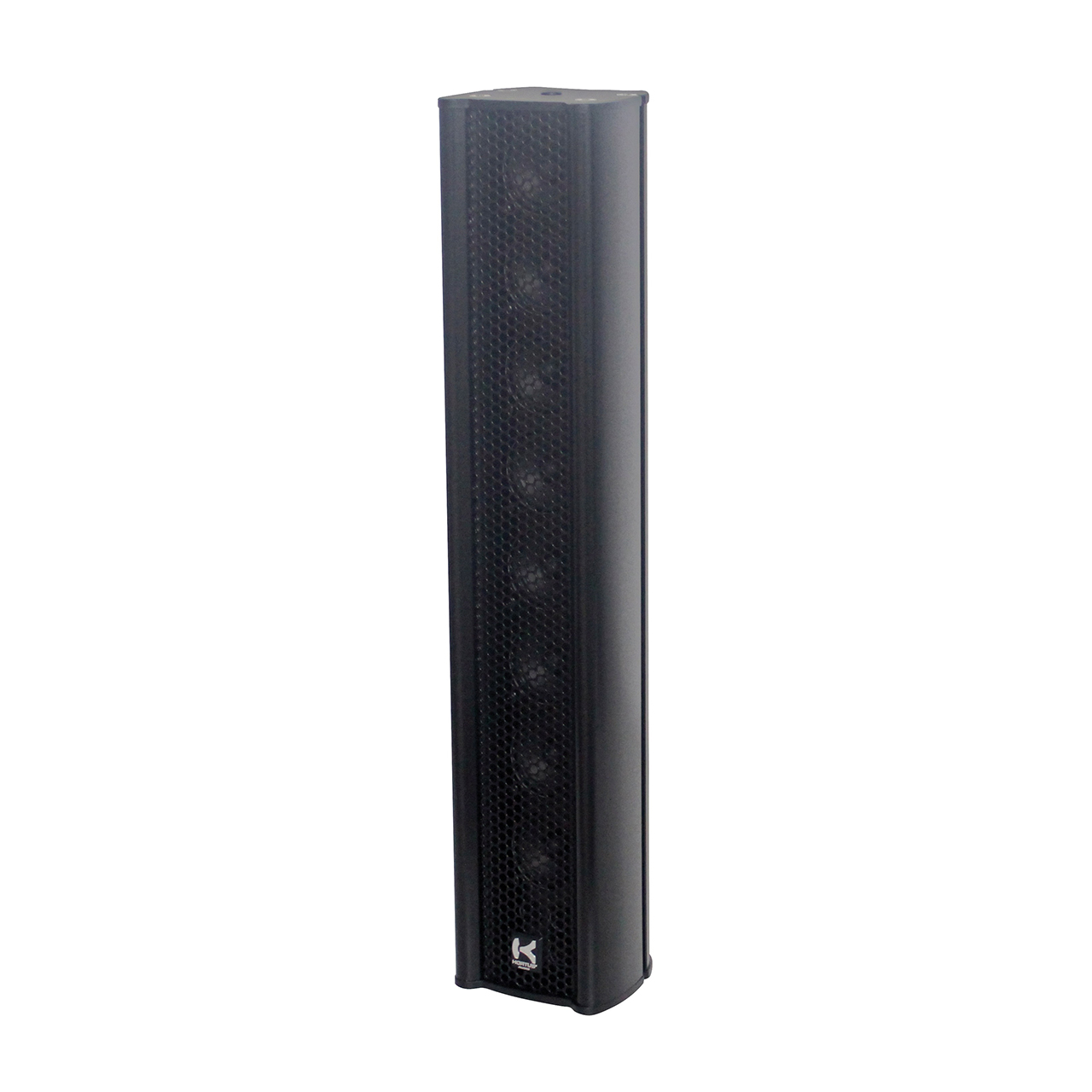

CLA85

The 250W CLA85 is a loudspeaker that uses a phoenix & speakon connector. With 8 x 2′ loudspeakers, it works particularly well with our CBA10 in venues such as: auditoriums, clubs, concerts, conferences, government functions, and theatres. The CLA85 weighs 2.5 kg with a height of nearly 50 cm.



Key features

Integrated DSP

Directivity (-6dB): 35° V

Applicable in a wide range of settings



Related applications

Specifications

Common technical specifications for the columns:
- Bandwidth (-6dB): 180 Hz to 18 kHz
- Made of extruded aluminium + aluminium sheets
- Black or white powder coated
- 4 fixing points on the rear for a wall mount (optional)
- 1 fixing point for safety cable
- 2 fixing points M10 (top & bottom)

CLA85
8 x 2” Loudspeaker column
- 250 W / 4 Ω (preset DSP)
- Directivity (-6dB): 35° V
- Connections: 1 Phoenix + 1 Spk
- Dim. H497 x D87 x W100 mm
- Wht: 2.5 kg

Product compatibility

Downloads
