Processors

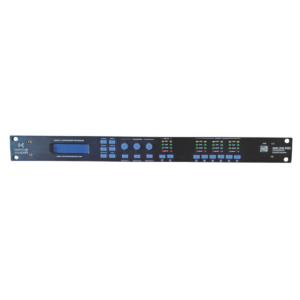

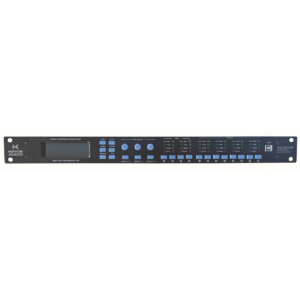

The Hortus Audio HSL Series consists of two 19′ processors: HSL-24 & HSL-48. The HSL-24 has two inputs and four outputs, while the HSL-48 has four inputs and eight outputs.
| HSL-24 | HSL-48 | |
|---|---|---|
| INPUTS | ||
| Inputs | 2 | 4 |
| Gain | -40dB -> + 12dB | |
| PEQ - low/HighShelf | 7 | 8 |
| Graphical Equalizer | NO | 30 Bands |
| Phase Inversion | YES | |
| Delay | 0 -> 20ms | 0 -> 1000ms |
| OUTPUTS | ||
| Outputs | 4 | 8 |
| Gain | -40dB -> +12dB | |
| PEQ - low/HighShelf | 6 | 9 |
| Phase Inversion | YES | |
| Delay | 0 -> 20ms | 0 -> 1000ms |
| Compressor | NO | ratio: 1:1 -> 1:16 |
| Threshold (step 1dBu) | -10dBu -> +20dBu | -20dBu -> +22dBu |
| Attack Time (ms) | 1 / 2 / 5 / 10 / 20 / 50 / 90 | 1 / 2 / 5 / 10 / 20 / 50 / 100 |
| Release time | 2X / 4X / 8X / 16X / 32X | |
| High Pass | Butterwoth/Bessel/Linkwitz Riley (-12/-18/-24/-48dB) | |
| Low Pass | Butterwoth/Bessel/Linkwitz Riley (-12/-18/-24/-48dB) | |
